Wheel Loader 960
  • Wheel Loader 960
  • Wheel Loader 960
  • Wheel Loader 960
  • Wheel Loader 960
  • Wheel Loader 960

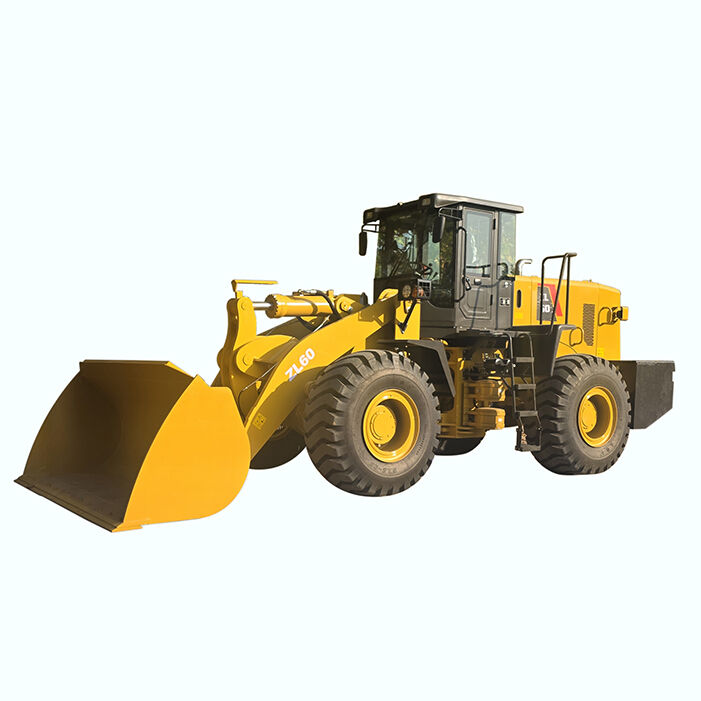

Wheel Loader 960

Wheel Loader 960

Plaats van herkomst China
Merknaam HORNQUIP
Certificering CE
Modelnummer 960
Productdetails
Nominale belasting:
6.000 kg
Emmercapaciteit:
2.65.5m ³
Bedrijfsgewicht:
19,000 kg
Band:
23.5-25
Chassis:
Gearticuleerd
Markeren:

Wheel Loader 960 heavy-duty

,

Wheel Loader 960 construction equipment

,

Wheel Loader 960 with warranty

Productbeschrijving

Wheel Loader 960 (6 tons)

Bucket capacity 3.5m³
Rated load 6000kg
Operating weight 19000kg
Performance of bucket being set level Yes
Max. breakout force 200KN
Total of three time:lifting dumping lowering 11.3s
Max.dump height 3160mm
Max.dump reach 1200mm
Wheel base 3260mm
Tread 2250mm
Overall dimensions (length*width*height) 8600*2950*3600mm
Engine WEICHAI
Model WD10G240E21
Pattern Turbocharger, vertical, water-cooled, 4-stroke, direct injection
Max.torque 920N.m
Rated power 175KW
Specified rotational speed 2200r/min
Transmission ZL60
Model of torque device Combined with the gearbox
Pattern single stage two phase four components
Pattern of gearboxes Planetary-structure
Number of great shift 2 forward,1reverse
Max.travel speed 40km/h
Main reducer type Spiral bevel gear first reduction
Pattern of wheelside moderation Single stage planetary
Type size 26.5-25
Steering angle(each direction) 35°±1
Min.turning radius(outside of bucket 7260mm
Brake system Air assisted oil disc on four wheel
Parking brake Soft control , disc type
Pressure of working hydraulic system 20Mpa
